8 Quart DC 12V Hydraulic Pump Power Supply Unit Pack Double Acting Dump Trailer Fit for Lift Unloading
Metal Reservior ,8 Quart,Double-acting; Displacement of Hydraulic Pump: 0.825 GPM .Relief Valve Pressure: 22 MPA ( 3200 PSI Max. Relief Setting For Increased Lifting Power on A port );1500 PSI Max Relief Setting on B port Hydraulic Pump Rated Speed:2850R/MIN; Motor Voltage : DC12-DV24 ; Motor power: 0.8–3KW; Double Acting Power-Up/Power-Down. Hand Held Pendant With About 15 Foot ( 4.5m) Removal Cord And Start Solenoid; SAE # 6 Port, Horizontal Mount Application: This Hydraulic Power U...
Metal Reservior ,8 Quart,Double-acting; Displacement of Hydraulic Pump: 0.825 GPM .Relief Valve Pressure: 22 MPA ( 3200 PSI Max. Relief Setting For Increased Lifting Power on A port );1500 PSI Max Relief Setting on B port
Hydraulic Pump Rated Speed:2850R/MIN; Motor Voltage : DC12-DV24 ; Motor power: 0.8–3KW;
Double Acting Power-Up/Power-Down. Hand Held Pendant With About 15 Foot ( 4.5m) Removal Cord And Start Solenoid; SAE # 6 Port, Horizontal Mount
Application: This Hydraulic Power Unit Is Suitable For Control Of A Set Of Double-Acting Cylinder. Widely Used In Small Dump Truck, Hydraulic Winch, Etc.
Hydraulic Power Unit(27.5 L x 11.8 W x 12.0 H),SAE # 6 Port,2.0 GPM,3200 PSI Max,steel tank,12V DC, double Acting, Solenoid Operation Supply Unit 8 Quart Tank

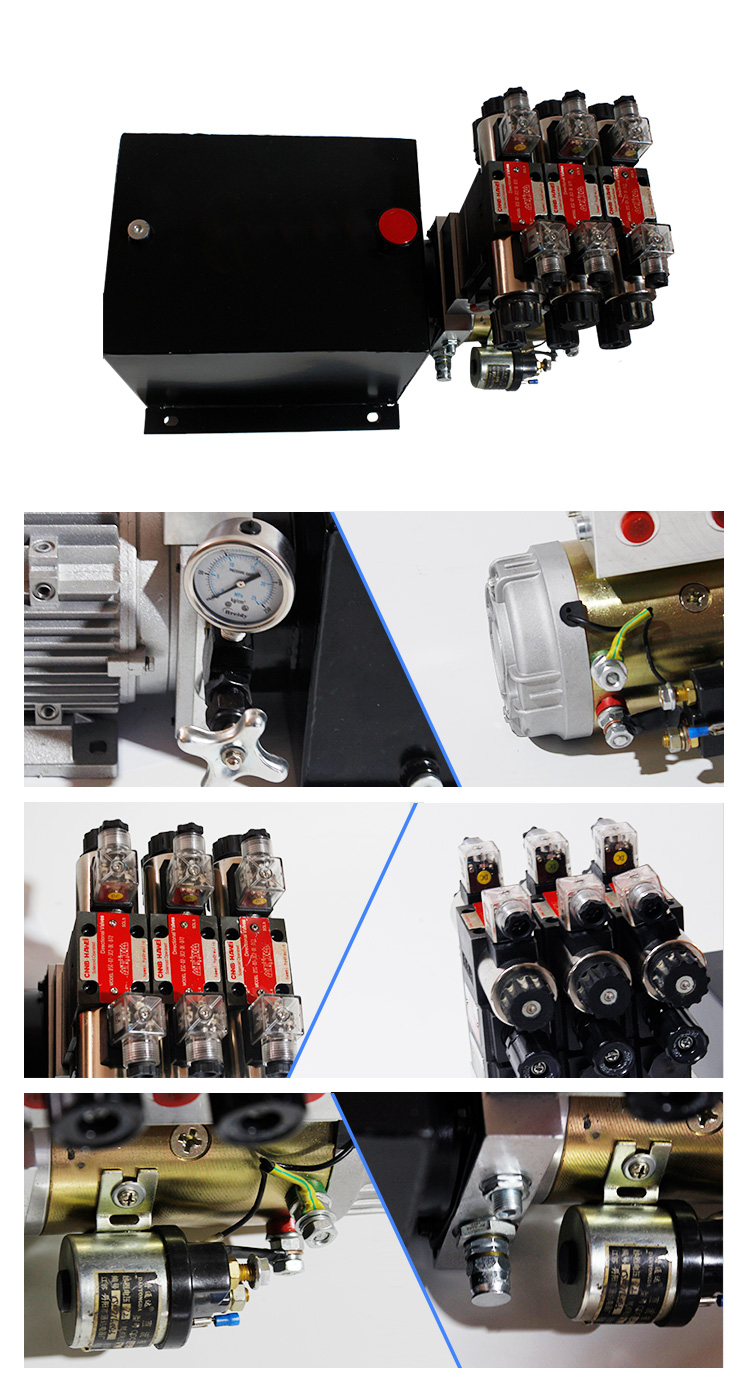

This Hydraulic Power Unit consists of high pressure gear pump, DC motor, multi-purpose integrated block, various function valves, oil tank and other components. It is widely used as the power resource for lifting and pushing device.The double acting type models are with power driving in both directions.
*Fuel Tank: 8 Quart
*Reservoir: Metal Reservoir
*Displacement Of Hydraulic Pump: 0.825GPM
*SAE # 6 Port, Horizontal Mount
*Voltage: DC 12V-DV 24V
*Motor Power:0.8- 3 KW
*1500 PS Max Relief Setting on B port
*3200 PSI Max. Relief Setting for Increased Lifting Power on A port .
*Application: For Dump Truck, Unloading, Crane, Lifting, etc.
Operation Method :

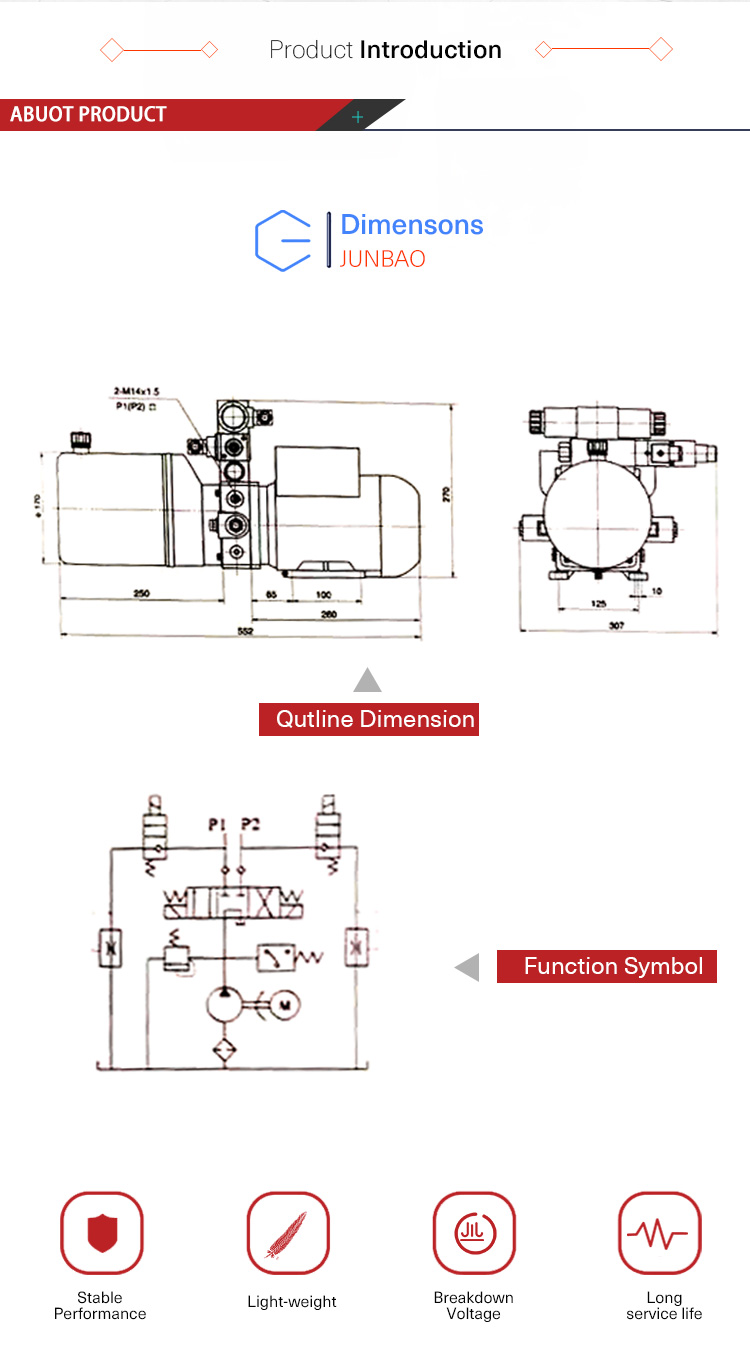

1 According to hydraulic principle diagrams, with clean connecting hydraulic powe unit and oil cylinder tubing.
2 According to the motor and the power of the electromagnetic valve marked characteristics( ac, dc voltage is properly connected. )
3 Inching motor observe any abnormal phenomenon. In actuators,without load, start the electric, short run test, check whether all the parts run smooothly, determine and correct after loading step by step to normal operation.
Package Include:1pc 12V 8L Double Acting Hydraulic Pump Item(Written Installation Instruction Not Include ,But We Will Send You A More Detail Electronic Instruction To You Through Email, You Can Also Contact Us When You Have Problems On Installation)
|Item Weight||31.3 pounds|
|Product Dimensions||27.5 x 11.8 x 12 inches|
|Item model number||L12t1217YYDLDY8-1|
|Size||8 Quart Double|
|Item Package Quantity||1|
|Customer Reviews||3.8 out of 5 stars 36 ratings
3.8 out of 5 stars
|Best Sellers Rank||#56,979 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
#27 in Hydraulic Power Units
|Shipping Weight||33.4 pounds|
|Date First Available||March 17, 2016|
CZNZN Hydraulic Power Unit 8 Quart Double Acting 12V DC Hydraulic Pump for Dump Trailer Car Lifting
Design:8 Quart displacement of hydraulic pump and designed for horizontal mounting,Standard duty 12VDC motor,Perfect replacement pump for 12V DC controlled hydraulic systems.
Hydraulic Pump Rated Speed:2850R/MIN; Motor power:0.8-3KW; Double acting power-up/power down;SAE # 6 Port;Hand held pendant with about 15 foot( 5m)removal cord and start solenoid, Fast start.
Wide Application:This product is widely used in small dump truck,hydraulic winch.This power unit is suitable for control of a set of double-acting cylinder,Widely used in small dump truck,hydraulic winch,etc.
Safety:Full high quality construction with high strength and hardness.Good wear resistance,durable in use,Pressure Gauge Observes the pressure accurately when the pump works,making the pump a safe environment,NO CRACK,NO LEAK.
Attention:Fluid choice shall be determined according to operating environment/temperature and we must keep the actuators,and pipeline cleaning,prevent dirt from entering the system.
|Item Weight||31.1 pounds|
|Size||8L Hydraulic Pump|
|Number Of Pieces||1|
|Flow Rate||2 GPM|
|Accessory Connection Type||Quick Connect|
|Special Features||Easy to Install|
|Shipping Weight||31.1 pounds|
|Date First Available||July 4, 2019|
