Monoblock Control Valve DCV40

Monoblock Control Valve DCV40

Short Description:

Model DCV40 with middle-high pressure monoblock construction is an independently developed control valves by our company. ♦ Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned. ♦ Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure. ♦ Oil way: Parallel circuit,power beyond option ♦ Control Way: Manual control, pneumatic control, hydraulic and electric control for optional. ♦ al...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Model DCV40 with middle-high pressure monoblock construction is an independently developed control valves by our company.

    ♦ Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

    ♦ Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

    ♦ Oil way: Parallel circuit,power beyond option

    ♦ Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

    ♦ alve construction: monoblock construction, 1-8 levers.

    ♦ Spool Function: 0,Y, P,A.

    ♦ Option:Hydraulic lock is available to be added on A and B port.

    ♦ The valve is widely used in the hydraulic system of forklift, environment vehicle and light loading machines.

    Specifications

    Nominal

    Pressure (Mpa)

    Max. pressure (Mpa)

     Nom. flow (L/min)

    Allowable

    Back, pressure (Mpa )

    Hydraulic Oil

    Tem.range

    (°c)

    Visc.range (mm2/s )

    Filtrating accuracy (卩m)

    16

    31.5 50

    W1

    -20~~80

    10-400

    W10

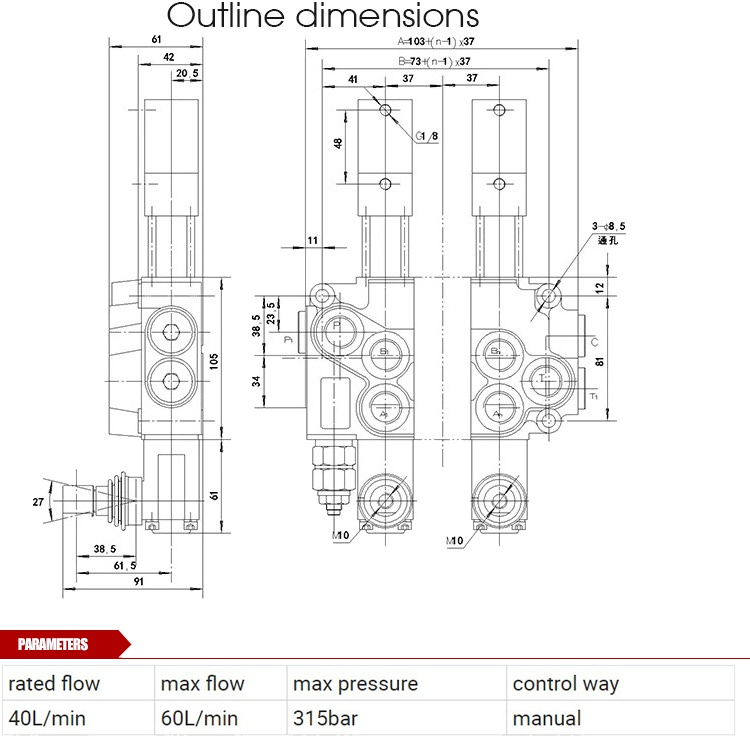

    Model Dcv40 Dimensional Data

    vd

    xc sd

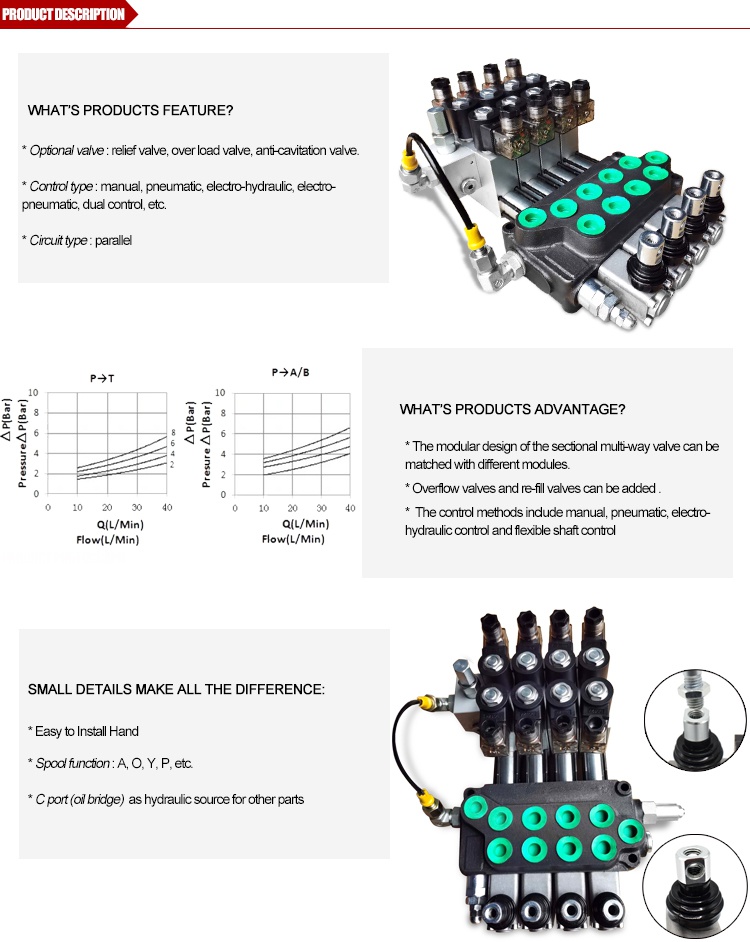

    DCV40xt (3)

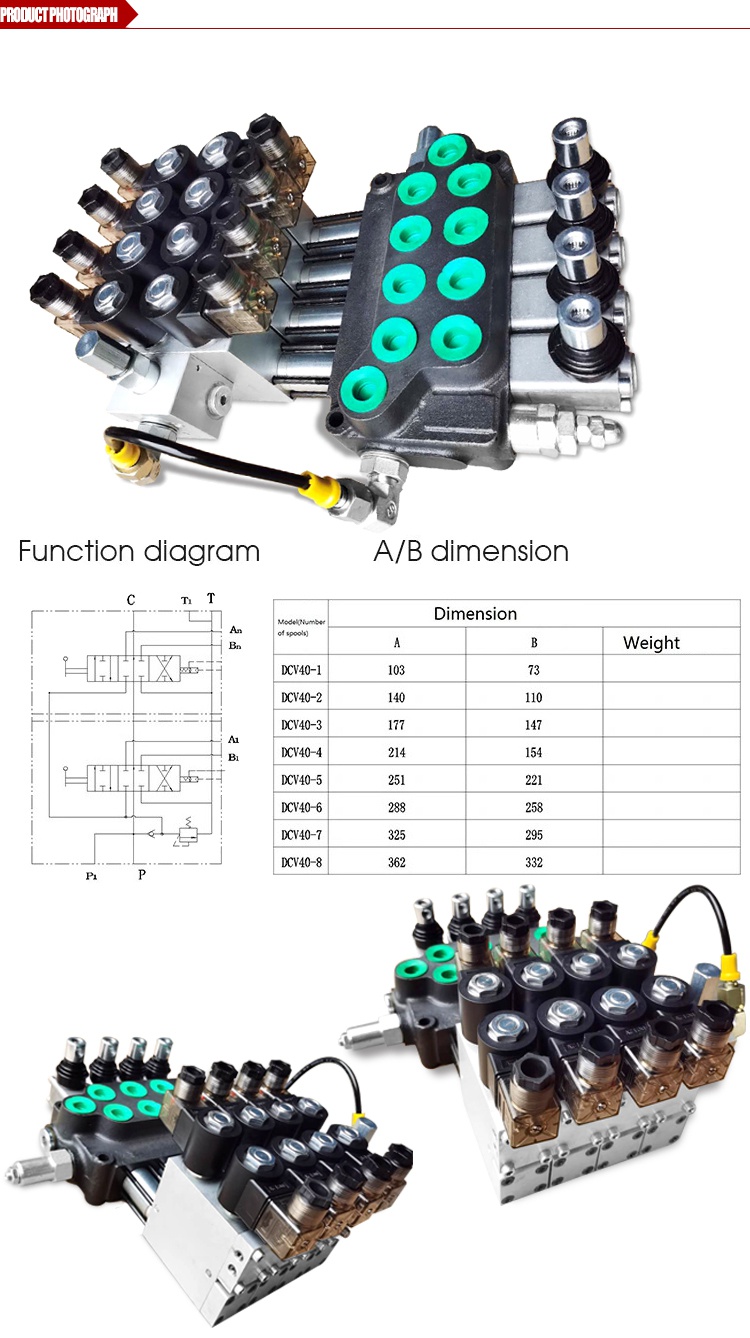

    DCV40xt (4)

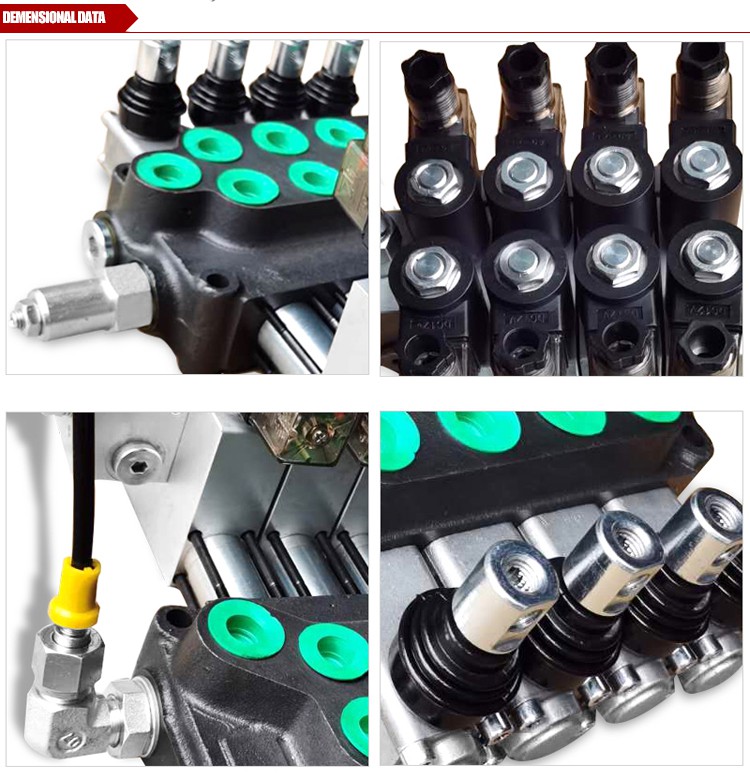

    DCV40xt (5)

    DCV40xt (1)

    DCV40xt (2)
